Developer Package

This enables:

  • Cross compilation
  • Using the required version of the C compiler (GCC)
  • etc.

To follow along the official tutorial, go to Section 5: Installing the components to develop software running on Arm Cortex-A (OpenSTLinux distribution).

Warning

Before proceeding, install OpenSTLinux by using the Starter Package.

Software Development Kit (SDK)

Installing the SDK

Create and move to your working directory:

mkdir developer-package
cd developer-package

Create and move to a sub-folder to keep your SDK installer:

mkdir sdk-installation
cd sdk-installation

  • Download the SDK from the OpenSTLinux Developer Package page.
  • Run the uname -m command and take note of your host architecture.
  • Download the package labeled Yocto_SDK[your_host_architecture].
  • Move this package to developer-package/sdk-installation

Note

This example follows a host architecture of x86_64, so keep in mind that file/folder names may be slightly different.

Extract the compressed files:

tar xvf en.SDK-x86_64-stm32mp1-openstlinux-6.1-yocto-mickledore-mp1-v23.06.21.tar.gz

Make a new folder from your working directory to keep your installer. For the sake of this example, here is my working directory so far:

developer-package/
|-- sdk-installation/
    |-- en.SDK-x86_64-stm32mp1-openstlinux-6.1-yocto-mickledore-mp1-v23.06.21.tar.gz
    |-- en.SDK-x86_64-stm32mp1-openstlinux-6.1-yocto-mickledore-mp1-v23.06.21/
        |-- yocto manifest files
        |-- installation shell script (ends with .sh)
|-- SDK
    |-- We will install the SDK here

From the sdk-installation/ folder, mark the installation script as an executable:

chmod +x stm32mp1-openstlinux-___-v23.06.21/sdk/st-image-weston-___-v23.06.21.sh

Warning

I am intentionally shortening the names with ___. Remember, tab completion is your friend! You do not have to manually type this.

Run the installation script, and store it in developer-package/SDK/:

  • The -d flag allows you to specify the target directory to keep the SDK.
./stm32mp1-openstlinux-___-v23.06.21/sdk/st-image-weston-___-v23.06.21.sh -d ./../SDK/

Source/Activate the SDK

From the developer-package/ directory, source the SDK:

  • Alternatively, you can use . instead of source.
source SDK/environment-setup-cortexa7t2hf-neon-vfpv4-ostl-linux-gnueabi

This must be done for every new terminal instance that is going to cross-compile.

Verifying the SDK

Call the following environment variables. If successful, the terminal will respond with feedback. Otherwise, the terminal will respond with an empty line.

Check the target architecture:

echo $ARCH

Check the toolchain prefix:

echo $CROSS_COMPILE

Check the C compiler version:

$CC --version

Check the SDK version:

echo $OECORE_SDK_VERSION

Running a User-space Application

Suppose that we have a program that we want to run on the stm32mp1 device. We will need to leverage the SDK to cross-compile the application to be able to run on the target device's computer architecture and hardware.

Cross-compiling

First, source the SDK. Make sure to re-do this step if you create a new terminal instance.

Create the application directory:

mkdir hello_world_example
cd hello_world_example

Add the following hello_world_example.c source code and Makefile:

// SPDX-identifier: GPL-2.0
/*
 * Copyright (C) STMicroelectronics SA 2018
 *
 * Authors: Jean-Christophe Trotin <jean-christophe.trotin@st.com>
 *
 */

#include <stdio.h>
#include <unistd.h>

int main(int argc, char **argv)
{
    int i =11;

    printf("\nUser space example: hello world from STMicroelectronics\n");
    setbuf(stdout,NULL);
    while (i--) {
        printf("%i ", i);
        sleep(1);
    }
    printf("\nUser space example: goodbye from STMicroelectronics\n");

    return(0);
}

PROG = hello_world_example
SRCS = hello_world_example.c
OBJS = $(SRCS:.c=.o)

CLEANFILES = $(PROG)
INSTALL_DIR = ./install_artifact/usr/local/bin

# Add / change option in CFLAGS if needed
# CFLAGS += <new option>

$(PROG):  $(OBJS)
    $(CC) $(CFLAGS) -o $(PROG) $(OBJS)

.c.o:
    $(CC) $(CFLAGS) -c $< -o $@

all: $(PROG)


clean:
    rm -f $(CLEANFILES) $(patsubst %.c,%.o, $(SRCS)) *~

install: $(PROG)
    mkdir -p $(INSTALL_DIR)
    install $(PROG) $(INSTALL_DIR)

You should have the following:

developer-package/
|-- sdk-installation/
|-- SDK/
|-- hello_world_example/
    |-- hello_world_example.c
    |-- Makefile

Note that the Makefile is using flags belonging to the SDK. This allows us to cross-compile the code to run on the board:

make
make install

Due to the install option defined in the Makefile, the resulting binary is stored in ./install_artifact/usr/local/bin. Copy this binary file to a USB flash drive.

Transferring

Tip

This example transfers files using a simple USB flash drive. If the device is connected to a network, Linux commands such as scp may also work.

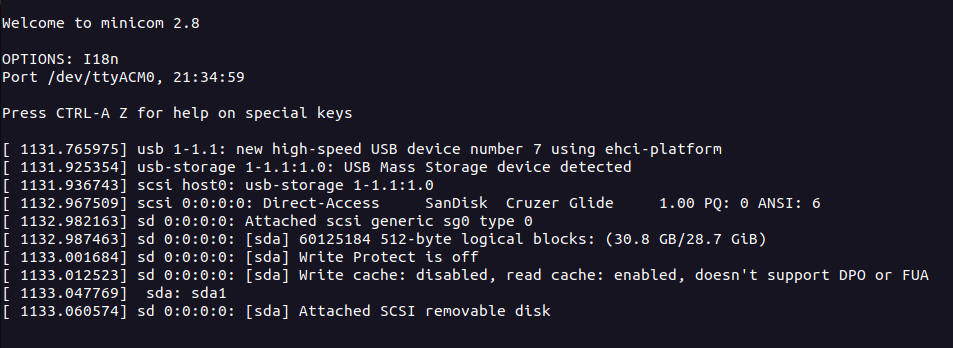

Connect the USB flash drive into the stm32MP1. If your host device is connected to the device's ST-Link through a Minicom session, you will see the USB flash drive detected.

usb_detected

Warning

Errors were experienced when using a USB flash drive formatted to use an Ex-FAT file system. However, FAT32 seemed to work just fine.

Success

Notice that the following steps have a terminal prompt of root@stm32mp1:~#. This is to indicate that the command is intended to be entered on the target device's terminal.

Mount the contents of the USB flash drive to a mounting point:

  • In the above screenshot of the output, you see that sda1 is assigned to sda. This is subject to change. You may see sda2 or even sba1.
root@stm32mp1:~# mount /dev/sda1 /mnt

Copy the binary file from the USB flash drive to local storage:

root@stm32mp1:~# cp /mnt/temp/hello_world_example /usr/local

Refresh:

root@stm32mp1:~# sync

Run

Mark the binary file as an executable and run.

root@stm32mp1:~# cd /usr/local
root@stm32mp1:~# chmod +x hello_world_example
root@stm32mp1:~# ./hello_world_example

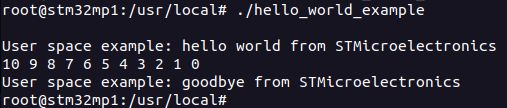

If successful, you will see the following output from the application:

app_running_output
