OS Flashing Tools

CubeProgrammer

This tool will be used for partitioning an SD card to support a Linux distribution.

  • Download the installer on stm32CubeProgrammer.
  • This also includes the stm32CubeCLT (Command Line Tool) internally.
  • Run the installer (the file ending with .linux) and accept all default options.
  • To use the executable icon to launch the program, right-click it and select Allow Launching.

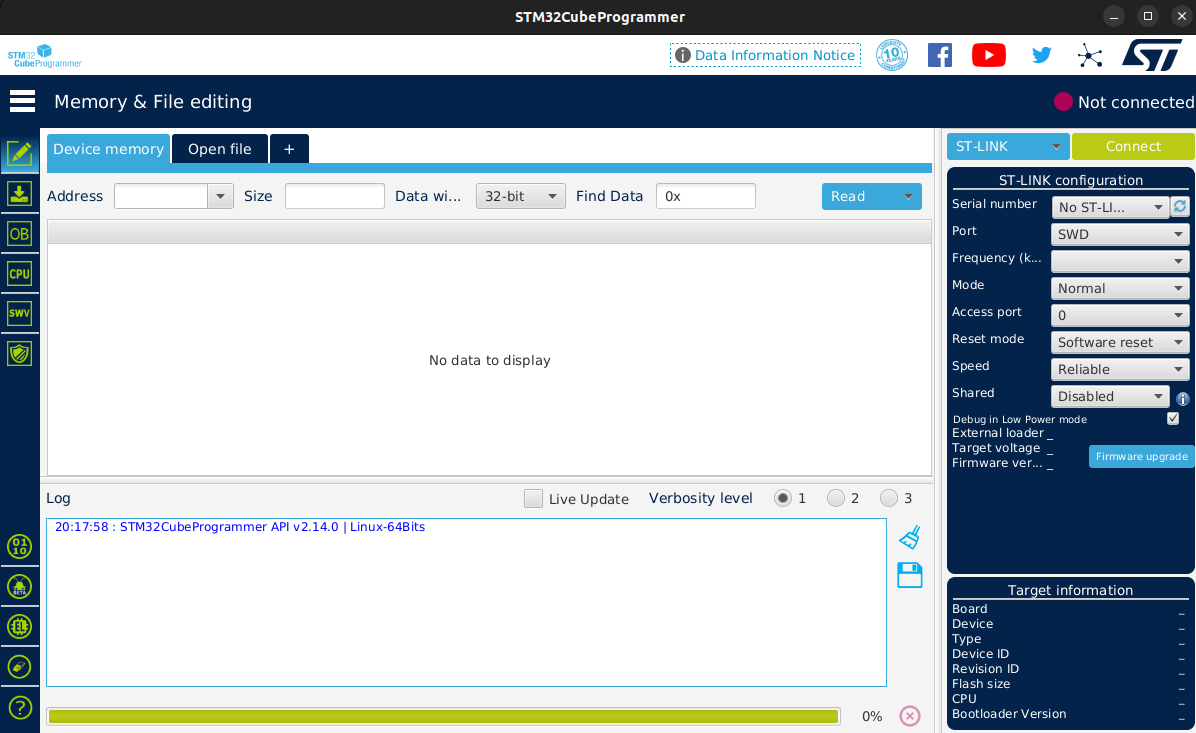

  • Running the executable should successfully yield the following window:

Cube Programmer Window

CubeCLT

This tool will allow CubeProgrammer to automate tasks for you, such as partioning the SD card for the file system.

Add the CLT to your environment paths. Open the file that runs everytime a Linux terminal is booted.

nano .bashrc

At the bottom of the file, add the following line to add the binaries to your paths. Then, save and close the file.

Tip

When using nano to edit the file, press ctrl+o followed by enter to write to the file, then ctrl+x to exit.

export PATH=$HOME/STMicroelectronics/STM32Cube/STM32CubeProgrammer/bin:$PATH

Test that the following command works in a new terminal session:

STM32_Programmer_CLI --h

If successful, you should expect the following output:

CubeCLT Paths Working Successfully
