Data Logger

This page was last updated: September 3, 2024

Details

  • Integrates the following support logging to a CSV file:
    • Writing and storing files
    • User input toggling
    • Receiving data from a queue
  • Observes whether the storage unit is connected or ejected.
  • Shares a status indicator of whether it is currently logging.

Firmware Component Library

Library API Docs

Source Code

classDiagram

direction TB

namespace ApplicationLayer {
    class DataLogger {
        +Run()

        -CreateCsvFile()
        -FindUniqueFileName()
        -RecordDataSample(): bool
        -SetState()
    }

    class IFileSystem {
        <<interface>>

        +Mount() bool
        +Unmont() bool
        +FileExists() bool
        +CreateFile() bool
        +OpenFile() bool
        +CloseFile() bool
        +WriteFile() bool
        +ReadFile() bool
        +CreateDirectory() bool
    }

    class CircularQueue {
        +Enqueue()
        +Dequeue() Generic_T
        +IsEmpty() bool
        +IsFull() bool
        +Clear()
        +Lock()
        +Unlock()
    }

    class DataPayload {
        +GetCsvFormatLength() int
        +CsvFormat()
        +Lock()
        +Unlock()
    }
}

namespace PlatformLayer {
    class IGpio {
        <<interface>>

        +Read() bool
        +Write()
        +ToggleDetected() bool
    }
}

DataLogger --> IFileSystem
DataLogger --> CircularQueue
DataLogger --> DataPayload
DataLogger --> IGpio

end

How to Use

Be sure to provide all the dependencies:

  • Any implementation of the IFileSystem interface, for managing files and block device mounting.
  • Any implementation of the IGpio interface, for reading a user's input to toggle data logging.
  • The CircularQueue and DataPayload for receiving data as an input.
  • A boolean that allows for observing whether the storage unit is connected or ejected.
  • A boolean for sharing whether we are currently logging.

Example

Using the DataLogger.

int cppMain() {
    // Initialize DataLogger object
    DataLogger data_logger(...);

    for(;;) {
        data_logger.Run();
    }
}

That is it! This library is kept simple to use due to the internal state machine. To get a full explanation on how to integrate the dependencies, go to the Current Implementation section.

State Machine

Internally, the DataLogger has the following states defined:

  • Idle
  • Standby
  • Logging

This approach was taken to handle multiple cases due to the state of the storage unit being connected/ejected and providing the user control over when to log data.

This was implemented by using abstraction and inheritance. Each state inherits from State(), which defines that each state must have actions when entering, computing/executing, and exiting.

The DataLogger then has a private SetState() method for defining what happens at transitions:

  • Perform exit actions.
  • Change states.
  • Perform entry actions.

Defining exit and entry actions ensures that something is performed only once, which can be beneficial for simplifying logic. No need to dedicate a boolean variable to indicate whether a particular action has been performed!

Info

You can find a simple, minimalist example of implementing a state machine in this article: Implementing a Finite State Machine in C++ by Aleksandr Hovhannisyan.

Note that in this article, instances of each state is created using a static method. In favor of a more idiomatic approach, we simply declared an instance of each state as a private variable.

stateDiagram-v2
    [*] --> Idle
    Idle --> Standby : Storage connected

    Standby --> Idle : Storage ejected
    Standby --> Logging : User switch enabled

    Logging --> Standby : User switch disabled
    Logging --> Idle : Storage ejected

Idle State

The default state at bootup. That is, entry actions does not occur when the device is booted.

  • Entry: Unmount the file system.
  • When the storage unit is connected, transition to the Standby state.
  • Exit: Mount the file system.

Standby State

  • When the storage unit is ejected, transition to the Idle state.
  • When the user toggles the loging switch, and the switch's state is HIGH, then logging is enabled and transition to the Logging state.

Logging State

  • Entry:
    • Create and open a new CSV file with a unique name
    • Clear the queue.
  • When the storage unit is ejected, transition to the Idle state.
  • When the user toggles the loging switch, and the switch's state is LOW, then logging is disabled and transition to the Standby state.
  • If the queue is not empty, grab an instance of the data payload and record it to the CSV file.
  • Exit: Close the CSV file.

Current Implementation

File System

Our FatFs wrapper fulfills the requirements of the IFileSystem interface. USB is used for our storage unit, so be sure to enable the following CubeMX settings described in that page's USB in a Baremetal Environment and USB in an RTOS Environment sections.

Thanks to our state machine, we only need one boolean variable to observe whether a USB flash drive is connected or ejected. Note that in C, there is no bool type, so we settle for using uint8_t.

In USB_HOST/App/usb_host.c:

/* USER CODE BEGIN Includes */
uint8_t usb_connected_observer = 0;

static void USBH_UserProcess  (USBH_HandleTypeDef *phost, uint8_t id)
{
  /* USER CODE BEGIN CALL_BACK_1 */
  switch(id)
  {
  case HOST_USER_SELECT_CONFIGURATION:
  break;

  case HOST_USER_DISCONNECTION:
  Appli_state = APPLICATION_DISCONNECT;
  usb_connected_observer = 0; // Set to false
  break;

  case HOST_USER_CLASS_ACTIVE:
  Appli_state = APPLICATION_READY;
  usb_connected_observer = 1; // Set to true
  break;

  case HOST_USER_CONNECTION:
  Appli_state = APPLICATION_START;
  break;

  default:
  break;
  }
  /* USER CODE END CALL_BACK_1 */
}

Then, expose this global variable in other files as necessary:

#include "usb_host.h"
extern uint8_t usb_connected_observer;

This variable will be used for initializing the DataLogger.

User Interrupt Signal

To provide the user the ability to toggle data logging, we leverage an interrupt signal. This is more power efficient and responsive than polling. A switch is preferrable over a push-button for two reasons:

  • Enabling/disabling is visually noticeable to the user.
  • No need to handle button de-bouncing in neither the hardware or firmware.

To enable a GPIO pin as an interrupt, enable the pin for GPIO_EXTIx on CubeMX. Do not enable it as a GPIO_Input — that is for polling operations. Then, enable the interrupt signal in the NVIC interrupt table.

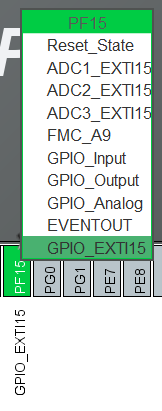

GPIO Pin Enabled

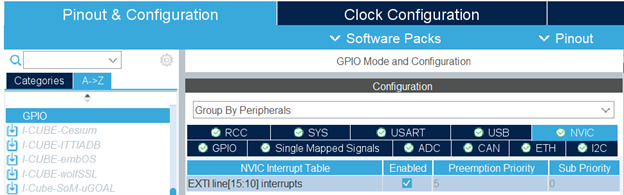

GPIO Interrupt Enabled

Then, configure when the interrupt signal will occur. Note that these interrupt signals can be very sensitive. So, the DataLogger uses a strategy of being notified when the switch is toggled. When toggled, the DataLogger will poll the GPIO pin to confirm whether the state is HIGH or LOW. This helps toggling to be far less sporadic and unstable.

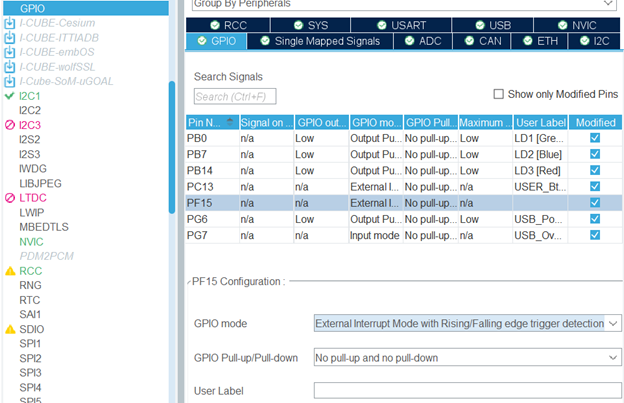

GPIO Interrupt Mode

Integrating

The CircularQueue and DataPayload are simple to provide to the DataLogger. Lastly, we just need to define a boolean variable for the DataLogger to internally update, according to whether it is logging.

Example

Integrating DataLogger with FatFs to write to a USB.

// 3rd Party Libraryes and Frameworks
#include "fatfs.h"
extern char USBHPath[4];   // USBH logical drive path
extern FATFS USBHFatFS;    // File system object for USBH logical drive
extern FIL USBHFile;       // File object for USBH

#include "usb_host.h"
extern uint8_t usb_connected_observer; // USB connected/ejected interrupt

// DFR Custom Dependencies
#include "../DFR_Libraries/Application/circular_queue.hpp"
#include "../DFR_Libraries/Application/data_payload.hpp"
#include "../DFR_Libraries/Application/DataLogger/DataLogger.hpp"
#include "../DFR_Libraries/Application/FileSystem/fat_fs.hpp"
#include "../DFR_Libraries/Platform/Interfaces/igpio.hpp"
#include "../DFR_Libraries/Platform/STM/F4/GPIO/gpio_stmf4.hpp"

std::shared_ptr<platform::GpioStmF4> gpio_callback_ptr(nullptr);

void HAL_GPIO_EXTI_Callback(uint16_t GPIO_Pin) {
    gpio_callback_ptr->InterruptCallback(GPIO_Pin);
}


void DataLoggingThread() {
    MX_USB_HOST_Init();

    auto file_system = std::make_shared<application::FatFs>(USBHPath, USBHFatFS, USBHFile);

    auto toggle_switch = std::make_shared<platform::GpioStmF4>(GPIOF, GPIO_PIN_15);
    gpio_callback_ptr = toggle_switch;

    application::CircularQueue<application::DataPayload> queue(size);

    application::DataPayload data_payload;

    bool is_logging_flag = false;

    application::DataLogger data_logger(file_system,
                                        toggle_switch,
                                        queue,
                                        usb_connected_observer,
                                        is_logging_flag);

    for (;;) {
        data_logger.Run();
        osDelay(1000);

        if (is_logging_flag) {
            printf("Logging...\n");
        }
        else {
            printf("Either in Standby or Idle state...\n");
        }
    }
}
