Fat FS
This page was last updated: September 3, 2024
Details
- A wrapper class based on ChaN's FatFS module.
- Compatible with USB OTG (On the Go) and SDIO communication protocols.

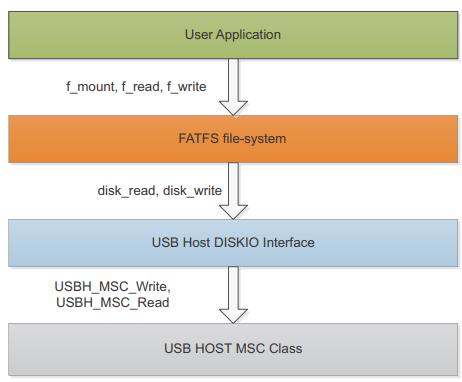

- Additional information can be found in ST's USB Host Library User Manual1.
CubeMX Platform Integrations
Integrating the library with the CubeMX settings is discussed first as this impacts how the device connecting/ejecting is to be synchronized with the library's usage.
USB in a Baremetal Environment
ControllersTech's STM32 USB Host MSC article and video are great references for enabling logging to a USB flash drive.
The following peripherals and libraries need to be made on CubeMX:
- USB OTG FS (Full Speed)
- Enable USB HOST
- FatFS Library

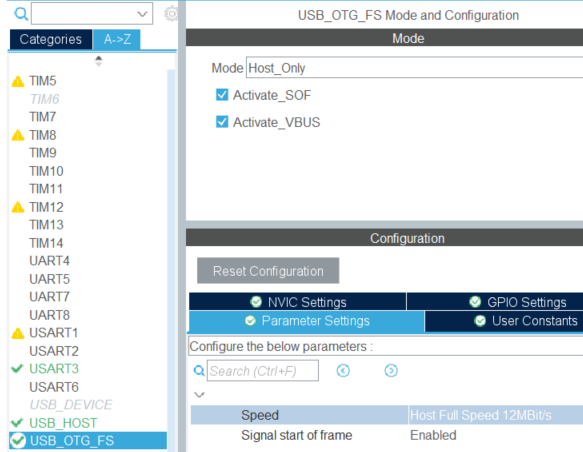

USB OTG FS communicates at 12 Mbps. Set its Mode to operate in Host_Only, and activate the 5 Volt VBus line to power the USB flash drive. Leave the Parameter Settings, User Constants, NVIC Settings, and GPIO Settings to their default values.

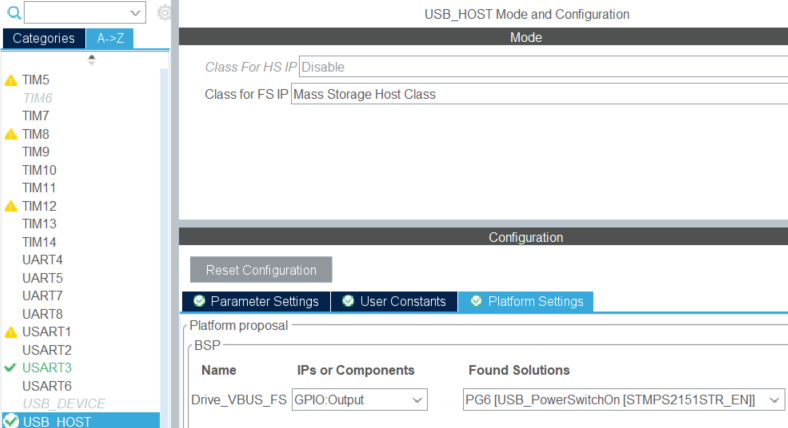

USB HOST's Class for FS IP should be set to Mass Storage Host Class. Go to the Platfom Settings tab and verify that Drive_VBUS_FS is configured to with GPIO:Output set to the pin responsible for providing the VBus line. This varies per microcontroller and can be verified by observing the board's schematics. For instance, on the Nucleo F429ZI development board, pin PG6 is responsible for powering the USB (that is, VBUS).

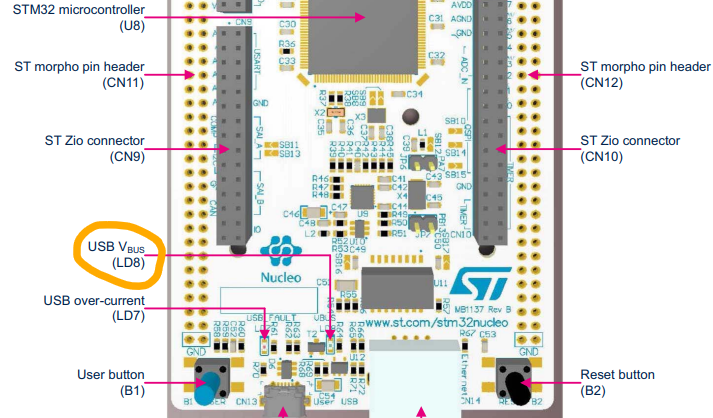

If done correctly, the LD7 LED light on the Nucleo F429ZI should be lit when running the program. This confirms that the board is providing power to the USB flash drive. 2
Success

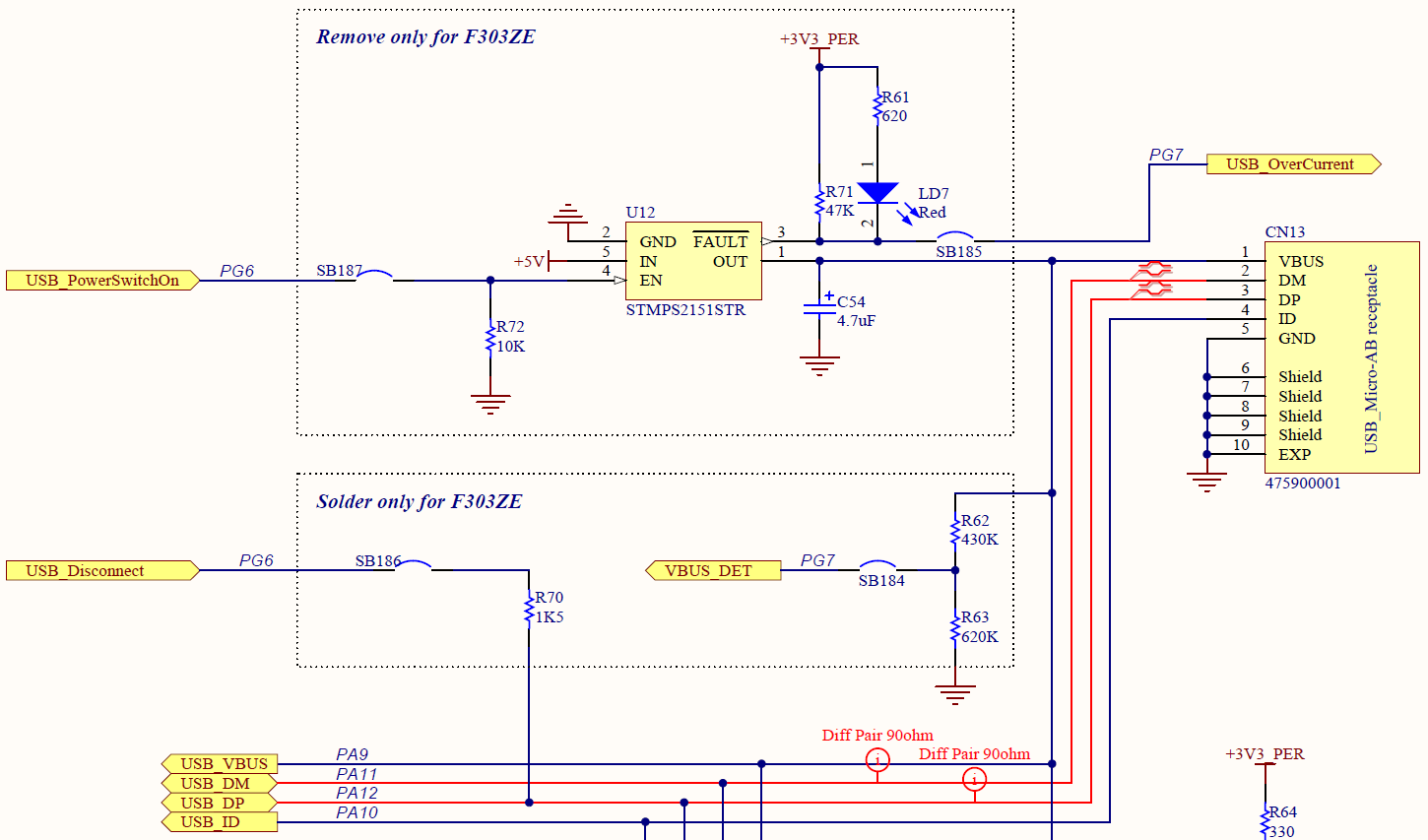

For reference, the schematics can be downloaded from the dev board's Product Page under CAD Resources > Schematic Pack > Schematics. After extracting the folder, a PDF of the schematics is contained inside the folder.

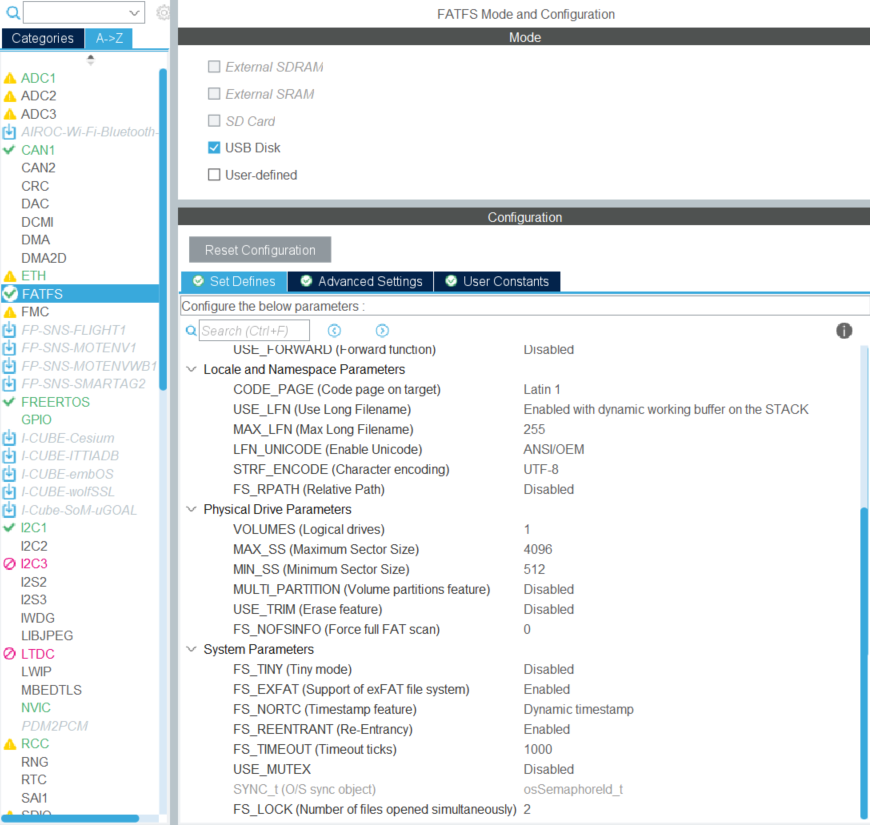

Lastly, enable FATFS to operate in the USB Disk mode, enable Long File Naming (USE_LFN), set Maximum Sector Size (MAX_SS) to 4096, and enable the exFAT file system (FS_EXFAT) for portability across user devices.
Saving your CubeMX .ioc configurations for auto-generating the code will add the FATFS/ and USB_HOST/ folder — resulting in the following project structure:
Following ControllersTech's STM32 USB Host MSC demonstration, there are pieces of code to be aware of. First, the USB Host is updated periodically, in main.c:
int main(void) {
HAL_Init();
SystemClock_Config();
MX_FATFS_Init();
MX_USB_HOST_Init();
while (1) {
MX_USB_HOST_Process();
}
}
MX_USB_HOST_Process() is a helper function for calling USBH_Process(), in USB_HOST/App/usb_host.c. The application code can be placed in this file instead of in the main function, and defines a switch statement that behaves like a state machine with interrupts handled by the USB Host library:
static void USBH_UserProcess (USBH_HandleTypeDef *phost, uint8_t id)
{
/* USER CODE BEGIN CALL_BACK_1 */
switch(id)
{
case HOST_USER_SELECT_CONFIGURATION:
break;
case HOST_USER_DISCONNECTION:
Appli_state = APPLICATION_DISCONNECT;
// Unmount the USB device for ejection here.
break;
case HOST_USER_CLASS_ACTIVE:
Appli_state = APPLICATION_READY;
// Mount the USB device and perform operations here.
break;
case HOST_USER_CONNECTION:
Appli_state = APPLICATION_START;
break;
default:
break;
}
/* USER CODE END CALL_BACK_1 */
}
The HOST_USER_DISCONNECTION case is executed when the USB is physically disconnected and the HOST_USER_CLASS_ACTIVE case is executed when the USB is physically connected.
This solution works for a brute-forced solution in a C environment, but how can we leverage our C++ library with this? Adding C++ code such as namespaces or classes to usb_host.c will not work because this is automatically configured by CubeIDE to be compiled with the C compiler. This obsticle applies to the other auto-generated files and folders. This has driven us to add Program/ folder to the CubeIDE project and enabled the C++ compiler to point to it. With C (USB state machine) and C++ (our custom libraries) in separate directories, they need a solution for synchronization. For a proof of concept, boolean variables are sufficient.
In USB_HOST/App/usb_host.c:
/* USER CODE BEGIN Includes */
uint8_t to_log = 0;
uint8_t to_unmount = 0;
static void USBH_UserProcess (USBH_HandleTypeDef *phost, uint8_t id)
{
/* USER CODE BEGIN CALL_BACK_1 */
switch(id)
{
case HOST_USER_SELECT_CONFIGURATION:
break;
case HOST_USER_DISCONNECTION:
Appli_state = APPLICATION_DISCONNECT;
to_unmount = 1; // Set the unmounting flag
break;
case HOST_USER_CLASS_ACTIVE:
Appli_state = APPLICATION_READY;
to_log = 1; // Set the logging flag
break;
case HOST_USER_CONNECTION:
Appli_state = APPLICATION_START;
break;
default:
break;
}
/* USER CODE END CALL_BACK_1 */
}
In Program/Src/app.cpp:
// 3rd Party Libraryes and Frameworks
#include "fatfs.h"
extern char USBHPath[4]; // USBH logical drive path
extern FATFS USBHFatFS; // File system object for USBH logical drive
extern FIL USBHFile; // File object for USBH
#include "usb_host.h"
int cppMain() {
MX_USB_HOST_Init();
// Initialize our FatFs wrapper class
application::FatFs file_system(USBHPath, USBHFatFS, USBHFile);
for (;;) {
if(to_log == 1) {
printf("Logging to USB\n");
file_system.Mount();
// Perform operations
to_log = 0;
} else if (to_unmount == 1) {
file_system.Unmount();
to_unmount = 0;
printf("USB ejected\n");
}
}
return 0;
}
USB in an RTOS Environment

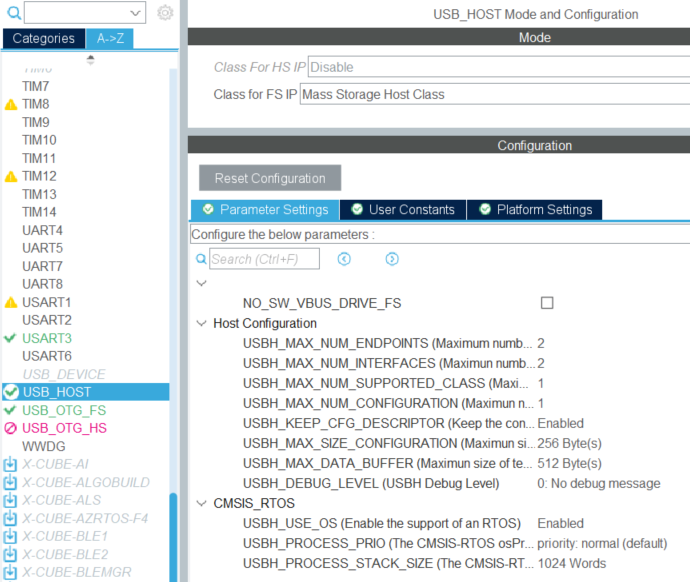

Enabling FreeRTOS on CubeMX will cause some of the USB peripheral code to be generated slightly differently. If you check the USB Host's Parameter Settings, an additional CMSIS_RTOS category of configurable fields have appeared at the bottom.
These settings reveal that CubeMX is generating code for initializing another thread behind the scenes. Examining the generated firmware closely has led to the Middlewares/ST/STM32_USB_Host_library/Core/Src/usbh_core.c file. This defines a function USBH_Process_OS() that calls USBH_Process() in a USBH_Thread thread — provided that the USBH_USE_OS field of the USB Host's Parameter Settings is enabled.
In Middlewares/ST/STM32_USB_Host_library/Core/Src/usbh_core.c:
#if (USBH_USE_OS == 1U)
#if (osCMSIS < 0x20000U)
/* Create USB Host Queue */
osMessageQDef(USBH_Queue, MSGQUEUE_OBJECTS, uint16_t);
phost->os_event = osMessageCreate(osMessageQ(USBH_Queue), NULL);
/* Create USB Host Task */
#if defined (USBH_PROCESS_STACK_SIZE)
osThreadDef(USBH_Thread, USBH_Process_OS, USBH_PROCESS_PRIO, 0U, USBH_PROCESS_STACK_SIZE);
#else
osThreadDef(USBH_Thread, USBH_Process_OS, USBH_PROCESS_PRIO, 0U, 8U * configMINIMAL_STACK_SIZE);
#endif /* defined (USBH_PROCESS_STACK_SIZE) */
phost->thread = osThreadCreate(osThread(USBH_Thread), phost);
// ...
#if (osCMSIS < 0x20000U)
static void USBH_Process_OS(void const *argument)
{
osEvent event;
for (;;)
{
event = osMessageGet(((USBH_HandleTypeDef *)argument)->os_event, osWaitForever);
if (event.status == osEventMessage)
{
USBH_Process((USBH_HandleTypeDef *)argument);
}
}
}
#endif
Recall that USBH_Process() was called through the MX_USB_HOST_Process() helper function in the USB in a Baremetal Environment section. The helper function was manually called in the superloop. Now, with FreeRTOS enabled, this is instead handled by the USBH_Thread thread and is not exposed to us.
However, to make this thread functional, it is vitally important to increase the stack size to 1024. This can be done by setting the USBH_PROCESS_STACK_SIZE to 1024 Words, as shown in the configuration image above. By default, this is set to only 128.
Tip
It may be helpful to re-test the firmware immediately after modifying thread properties, such as stack size. Insufficient memory allocated to a thread will cause the microcontroller to suddenly context-switch to a Hard Fault handler, where it is stuck in an infinite loop. While step-debugging, you can see that this may occur at any moment. Simply increase the stack size until the thread can run reliably for multiple iterations.

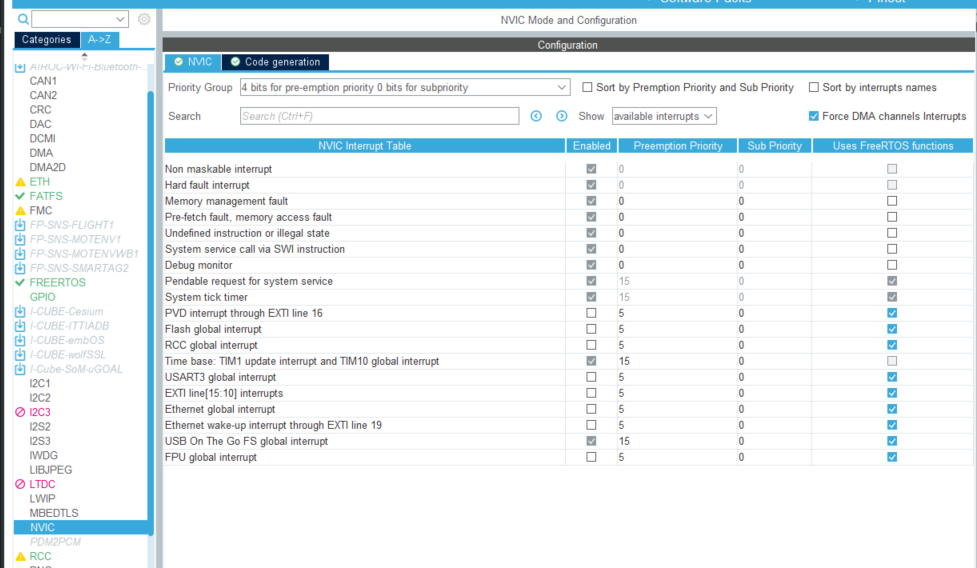

Moving on, since the USB Host leverages interrupts to update its state machine, additional configurations are required to make it functional with FreeRTOS. In the NVIC settings, the Preemption Priority column of the USB On The Go FS global interrupt field is set to 15. This lowers the priority of the USB's interrupt so that it does not conflict with other pre-existing system interrupts.
Tip
A lower preemption priority corresponds to a logically higher numerical value. The higher the value, the lower the priority. Thus, the USB's interrupt was changed from a default value of 5 to the lowest support value of 15.
Warning

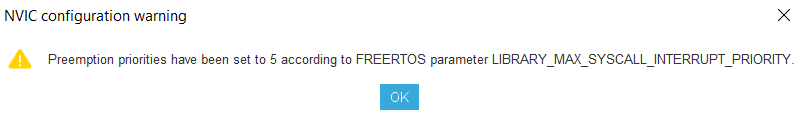

Allowing CubeMX to generate code with these new configurations yields the following warning:
As of now, this has not raised any noticeable issues.
Lastly, we must configure the hardware interrupt signals to work with RTOS by adding NVIC_SetPriorityGrouping( 0 ); right before the RTOS Kernel is initialized and started.
Warning
Omitting NVIC_SetPriorityGrouping( 0 ); will cause the microcontroller to get stuck in the following code at line 770 of the port.c file:
#if( configASSERT_DEFINED == 1 )
void vPortValidateInterruptPriority( void )
{
uint32_t ulCurrentInterrupt;
uint8_t ucCurrentPriority;
/* Obtain the number of the currently executing interrupt. */
__asm volatile( "mrs %0, ipsr" : "=r"( ulCurrentInterrupt ) :: "memory" );
/* Is the interrupt number a user defined interrupt? */
if( ulCurrentInterrupt >= portFIRST_USER_INTERRUPT_NUMBER )
{
/* Look up the interrupt's priority. */
ucCurrentPriority = pcInterruptPriorityRegisters[ ulCurrentInterrupt ];
/* The following assertion will fail if a service routine (ISR) for
an interrupt that has been assigned a priority above
configMAX_SYSCALL_INTERRUPT_PRIORITY calls an ISR safe FreeRTOS API
function. ISR safe FreeRTOS API functions must *only* be called
from interrupts that have been assigned a priority at or below
configMAX_SYSCALL_INTERRUPT_PRIORITY.
Numerically low interrupt priority numbers represent logically high
interrupt priorities, therefore the priority of the interrupt must
be set to a value equal to or numerically *higher* than
configMAX_SYSCALL_INTERRUPT_PRIORITY.
Interrupts that use the FreeRTOS API must not be left at their
default priority of zero as that is the highest possible priority,
which is guaranteed to be above configMAX_SYSCALL_INTERRUPT_PRIORITY,
and therefore also guaranteed to be invalid.
FreeRTOS maintains separate thread and ISR API functions to ensure
interrupt entry is as fast and simple as possible.
The following links provide detailed information:
http://www.freertos.org/RTOS-Cortex-M3-M4.html
http://www.freertos.org/FAQHelp.html */
configASSERT( ucCurrentPriority >= ucMaxSysCallPriority );
}
/* Priority grouping: The interrupt controller (NVIC) allows the bits
that define each interrupt's priority to be split between bits that
define the interrupt's pre-emption priority bits and bits that define
the interrupt's sub-priority. For simplicity all bits must be defined
to be pre-emption priority bits. The following assertion will fail if
this is not the case (if some bits represent a sub-priority).
If the application only uses CMSIS libraries for interrupt
configuration then the correct setting can be achieved on all Cortex-M
devices by calling NVIC_SetPriorityGrouping( 0 ); before starting the
scheduler. Note however that some vendor specific peripheral libraries
assume a non-zero priority group setting, in which cases using a value
of zero will result in unpredictable behaviour. */
configASSERT( ( portAIRCR_REG & portPRIORITY_GROUP_MASK ) <= ulMaxPRIGROUPValue );
}
#endif /* configASSERT_DEFINED */
The global boolean variables for synchronizing our application code with the USB's interrupts described in the USB in a Baremetal Environment section still applies. Finally, we can initialize our own thread to make use of the USB flash drive.
// 3rd Party Libraryes and Frameworks
#include "cmsis_os.h"
#include "fatfs.h"
extern char USBHPath[4]; /* USBH logical drive path */
extern FATFS USBHFatFS; /* File system object for USBH logical drive */
extern FIL USBHFile; /* File object for USBH */
#include "usb_host.h"
// DFR Custom Dependencies
#include "app.hpp"
#include "Application/FileSystem/fat_fs.hpp"
osThreadId_t dataLoggingTaskHandle;
const osThreadAttr_t dataLoggingTask_attributes = {
.name = "dataLoggingTask",
.stack_size = 128 * 17,
.priority = (osPriority_t) osPriorityNormal,
};
void RtosInit() {
dataLoggingTaskHandle = osThreadNew(DataLoggingThread, NULL, &dataLoggingTask_attributes);
}
int cppMain() {
NVIC_SetPriorityGrouping( 0 );
osKernelInitialize(); // Initialize scheduler
RtosInit(); // Initialize thread
osKernelStart(); // Start scheduler
// The remaining code in this function is never reached as it is overtaken by the kernel.
// The threads are running instead.
for(;;) {
}
return 0;
}
void DataLoggingThread(void *argument) {
MX_USB_HOST_Init();
// Initialize our FatFs wrapper class
application::FatFs file_system(USBHPath, USBHFatFS, USBHFile);
for (;;) {
if(to_log == 1) {
printf("Logging to USB\n");
file_system.Mount();
// Perform operations
to_log = 0;
} else if (to_unmount == 1) {
file_system.Unmount();
to_unmount = 0;
printf("USB ejected\n");
}
}
return 0;
}
Here, two threads are running:
- The hidden
USBH_Thread, and - Our
DataLoggingThread.
SDIO
Theoretically, our FatFs wrapper class should be functional for logging to a micro-SD card using through the SDIO communication protocol.
Recall that the USB implementation leverages externally defined variables. These are defined by the FATFS library.
Defined in fatfs.c:
#include "fatfs.h"
uint8_t retUSBH; /* Return value for USBH */
char USBHPath[4]; /* USBH logical drive path */
FATFS USBHFatFS; /* File system object for USBH logical drive */
FIL USBHFile; /* File object for USBH */
Exposed in fatfs.h: and defined in fatfs.c:
extern uint8_t retUSBH; /* Return value for USBH */
extern char USBHPath[4]; /* USBH logical drive path */
extern FATFS USBHFatFS; /* File system object for USBH logical drive */
extern FIL USBHFile; /* File object for USBH */
Used inn our Program/Src/app.cpp:
#include "fatfs.h"
extern char USBHPath[4]; /* USBH logical drive path */
extern FATFS USBHFatFS; /* File system object for USBH logical drive */
extern FIL USBHFile; /* File object for USBH */
application::FatFs file_system(USBHPath, USBHFatFS, USBHFile);
However, unlike with the USB implementation, the variables expected to be passed to the constructor may have to be manually defined. This is the justification for expecting these parameters to be passed via the constructor instead of being internally hidden. It is up to the consumer of this library to provide these necessary inputs.
If SDIO is ever to be re-implemented, ControllersTech's Interface SD Card with SDIO article and video may be a great reference.
Hardware

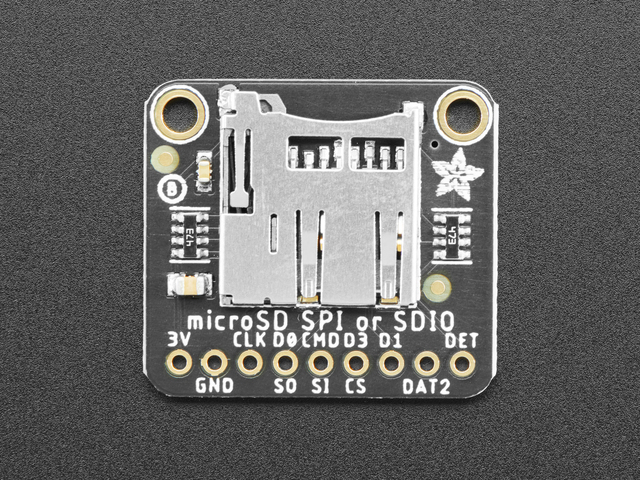

- Device: SDIO Breakout Board by Adafruit.
Pinout
| Nucleo F446RE | Breakout Board |
|---|---|
| PC8 | DAT0 |
| PC9 | DAT1 |
| PC10 | DAT2 |
| PC11 | DAT3 |
| PC12 | CLK |
| PD2 | CMD |
| PB6 | CD (Card Detection) |
Firmware Component Library
classDiagram
direction TB
namespace ApplicationLayer {
class IFileSystem {
<<interface>>
-kReadOnlyMode: char* = "r"
-kReadWriteMode: char* = "r+"
-kEmtpyFileAndWriteMode: char* = "w"
-kEmptyFileAndReadWriteMode: char* = "w+"
-kAppendFileAndWriteMode: char* = "a"
-kAppendFileAndReadWriteMode: char* = "a+"
-kNewFileAndWriteMode: char* = "wx"
-kNewFileAndReadWriteMode: char* = "w+x"
-ErrorFlags : uint16_t
-kNumErrorFlags: uint8_t = 9
-errors_: int = kNumErrorFlags
-SetError()
-GetError() unsigned int
+Mount() bool
+Unmont() bool
+FileExists() bool
+CreateFile() bool
+OpenFile() bool
+CloseFile() bool
+WriteFile() bool
+ReadFile() bool
+CreateDirectory() bool
}
class FatFs{
-kReadOnlyMode: char* = "r"
-kReadWriteMode: char* = "r+"
-kEmtpyFileAndWriteMode: char* = "w"
-kEmptyFileAndReadWriteMode: char* = "w+"
-kAppendFileAndWriteMode: char* = "a"
-kAppendFileAndReadWriteMode: char* = "a+"
-kNewFileAndWriteMode: char* = "wx"
-kNewFileAndReadWriteMode: char* = "w+x"
-ErrorFlags : uint16_t
-kNumErrorFlags: uint8_t = 9
-errors_: int = kNumErrorFlags
-SetError()
-GetError() unsigned int
-kMaxDrivePathLength: uint8_t = 4
-kForceMount: BYTE = 1
-FileDoesNotExist() bool
-EvaluateResult() bool
+Mount() bool
+Unmont() bool
+FileExists() bool
+CreateFile() bool
+OpenFile() bool
+CloseFile() bool
+WriteFile() bool
+ReadFile() bool
+CreateDirectory() bool
}
}
IFileSystem <-- FatFs
endHow to Use
Before beginning operations on files and directories, it is important to mount the block device onto the file system. Also, before ejecting the block device, it must be unmounted.
Example
Mounting the block device before beginning file/directory operations.
Files and directories can be created in any format to suite the user, provided that the file path is maintained.
Example
Creating folders and sub-directories.
int cppMain() {
MX_USB_HOST_Init();
application::FatFs file_system(USBHPath, USBHFatFS, USBHFile);
file_system.Mount();
char dir1_path[] = "/DIR1";
file_system.CreateDirectory(dir1_path);
char dir_file_path[] = "/DIR1/file1.txt";
file_system.CreateFile(root_file_path);
char subdir1_path[] = "/DIR1/SUBDIR1";
file_system.CreateDirectory(subdir1_path);
char subdir_file_path[] = "/DIR1/SUBDIR1/file2.txt";
file_system.CreateFile(root_file_path);
file_system->Unmount();
return 0;
}
This result in the following file directory tree:
To interact with a file, it must first be opened. Then, it must be closed when finished.
Example
Writing to a file.
int cppMain() {
MX_USB_HOST_Init();
application::FatFs file_system(USBHPath, USBHFatFS, USBHFile);
file_system.Mount();
char root_file_path[] = "/ROOTFILE.txt";
file_system.CreateFile(root_file_path);
file_system.OpenFile(root_file_path, (char*)"a");
file_system.WriteFile((char*)"Hello World");
file_system.CloseFile();
file_sytem.Unmount();
return 0;
}
To understand why the "a" flag is provided as an argument to OpenFile(), see the POSIX-Compliant Flags section.
It is possible to search for a file and determine whether it exists. Similar to the other functions, FileExists() provides a return status for the consumer of the library to handle appropriately for their specific use case.
Example
Checking whether a specific file exists.
Example
Reading content from a file.
int cppMain() {
MX_USB_HOST_Init();
application::FatFs file_system(USBHPath, USBHFatFS, USBHFile);
file_system.Mount();
uint8_t max_buffer_size = 10;
char buffer[max_buffer_size];
bool status = file_system.ReadFile(buffer);
if (status) {
printf(buffer);
} else {
printf((char*)"Reading failed!");
}
file_system.Unmount();
return 0;
}
Here, we initialize a buffer capable of holding up to 10 characters.
Any file type is supported. To write to a CSV file, the column entries are separated with a comma , and row entries are separated with a new line \n.
Example
Using the IFileSystem abstract interface to interact with FatFs to create and write a CSV file.
int cppMain() {
MX_USB_HOST_Init();
std::unique_ptr<application::IFileSystem> file_system(nullptr);
file_system = std::make_unique<application::FatFs>(USBHPath, USBHFatFS, USBHFile);
file_system->Mount();
char root_file_path[] = "/ROOTFILE.csv";
file_system->CreateFile(root_file_path);
char root_file_header_row[] = "LinPot1,LinPot2,AccX,AccY,AccZ\n";
char root_file_contents[] = "2.3,2.45,2,9,200\n";
file_system->OpenFile(root_file_path, (char*)"a");
file_system->WriteFile(root_file_header_row);
file_system->WriteFile(root_file_contents);
file_system->WriteFile(root_file_contents);
file_system->CloseFile();
file_system->Unmount();
return 0;
}
The ROOTFILE.csv file will contain the following:
| Linpot1 | Linpot2 | AccX | AccY | AccZ |
|---|---|---|---|---|
| 2.3 | 2.45 | 2 | 9 | 200 |
| 2.3 | 2.45 | 2 | 9 | 200 |
POSIX-Compliant Flags
The FileOpen() method requires a valid POSIX-compliance flag for determining the access mode in which the file is to be opened with. This serves to translate between the common POSIX standard and the Fat FS byte flags 3.
| POSIX | Fat FS |
|---|---|
"r" |
FA_READ |
"r+" |
FA_READ FA_WRITE |
"w" |
FA_CREATE_ALWAYS FA_WRITE |
"w+" |
FA_CREATE_ALWAYS FA_WRITE FA_READ |
"a" |
FA_OPEN_APPEND FA_WRITE |
"a+" |
FA_OPEN_APPEND FA_WRITE FA_READ |
"wx" |
FA_CREATE_NEW FA_WRITE |
"w+x" |
FA_CREATE_NEW FA_WRITE FA_READ |
Error Setting
Fat FS supports the following status values, defined by FRESULT in their ff.h file.
/* File function return code (FRESULT) */
typedef enum {
FR_OK = 0, /* (0) Succeeded */
FR_DISK_ERR, /* (1) A hard error occurred in the low level disk I/O layer */
FR_INT_ERR, /* (2) Assertion failed */
FR_NOT_READY, /* (3) The physical drive cannot work */
FR_NO_FILE, /* (4) Could not find the file */
FR_NO_PATH, /* (5) Could not find the path */
FR_INVALID_NAME, /* (6) The path name format is invalid */
FR_DENIED, /* (7) Access denied due to prohibited access or directory full */
FR_EXIST, /* (8) Access denied due to prohibited access */
FR_INVALID_OBJECT, /* (9) The file/directory object is invalid */
FR_WRITE_PROTECTED, /* (10) The physical drive is write protected */
FR_INVALID_DRIVE, /* (11) The logical drive number is invalid */
FR_NOT_ENABLED, /* (12) The volume has no work area */
FR_NO_FILESYSTEM, /* (13) There is no valid FAT volume */
FR_MKFS_ABORTED, /* (14) The f_mkfs() aborted due to any problem */
FR_TIMEOUT, /* (15) Could not get a grant to access the volume within defined period */
FR_LOCKED, /* (16) The operation is rejected according to the file sharing policy */
FR_NOT_ENOUGH_CORE, /* (17) LFN working buffer could not be allocated */
FR_TOO_MANY_OPEN_FILES, /* (18) Number of open files > _FS_LOCK */
FR_INVALID_PARAMETER /* (19) Given parameter is invalid */
} FRESULT;
To abstract this away, while still maintaining error values that provide context of where something may have failed, an enum along with bitfields were defined in the IFileSystem interface.
enum class ErrorFlags : uint16_t {
Mounting = 1 << 0,
Unmounting = 1 << 1,
FileNotFound = 1 << 2,
CreateFile = 1 << 3,
OpenFile = 1 << 4,
ReadFile = 1 << 5,
WriteFile = 1 << 6,
CloseFile = 1 << 7,
CreateDirectory = 1 << 8
};
static constexpr uint8_t kNumErrorFlags = 9;
unsigned int errors_ : kNumErrorFlags;
void SetError(ErrorFlags flag) {
errors_ |= static_cast<uint16_t>(flag);
}
unsigned int GetError(ErrorFlags flag) {
return errors_ & static_cast<uint16_t>(flag);
}
This allows SetError() to be utilized by our FatFs wrapper class when evaluating the success/failure of an operation indicated by FRESULT — a status indicator that is specific to their library.
Warning
For maintaining the errors_ bitfield, the kNumErrorFlags must match with the mount of entries in the ErrorFlags enum. This constant must be updated appropriately if flags are added/removed from ErrorFlags.
-
ST's USB Host Library user manual. ↩
-
ST's Nucleo-144 Boards user manual. ↩
-
The values in the Fat FS columns are combined into a single byte using the bitwise OR
|operator. ↩
