Viewing RTOS Threads, Queues, and Memory

This page was last updated: September 3, 2024

Start a debugging session.

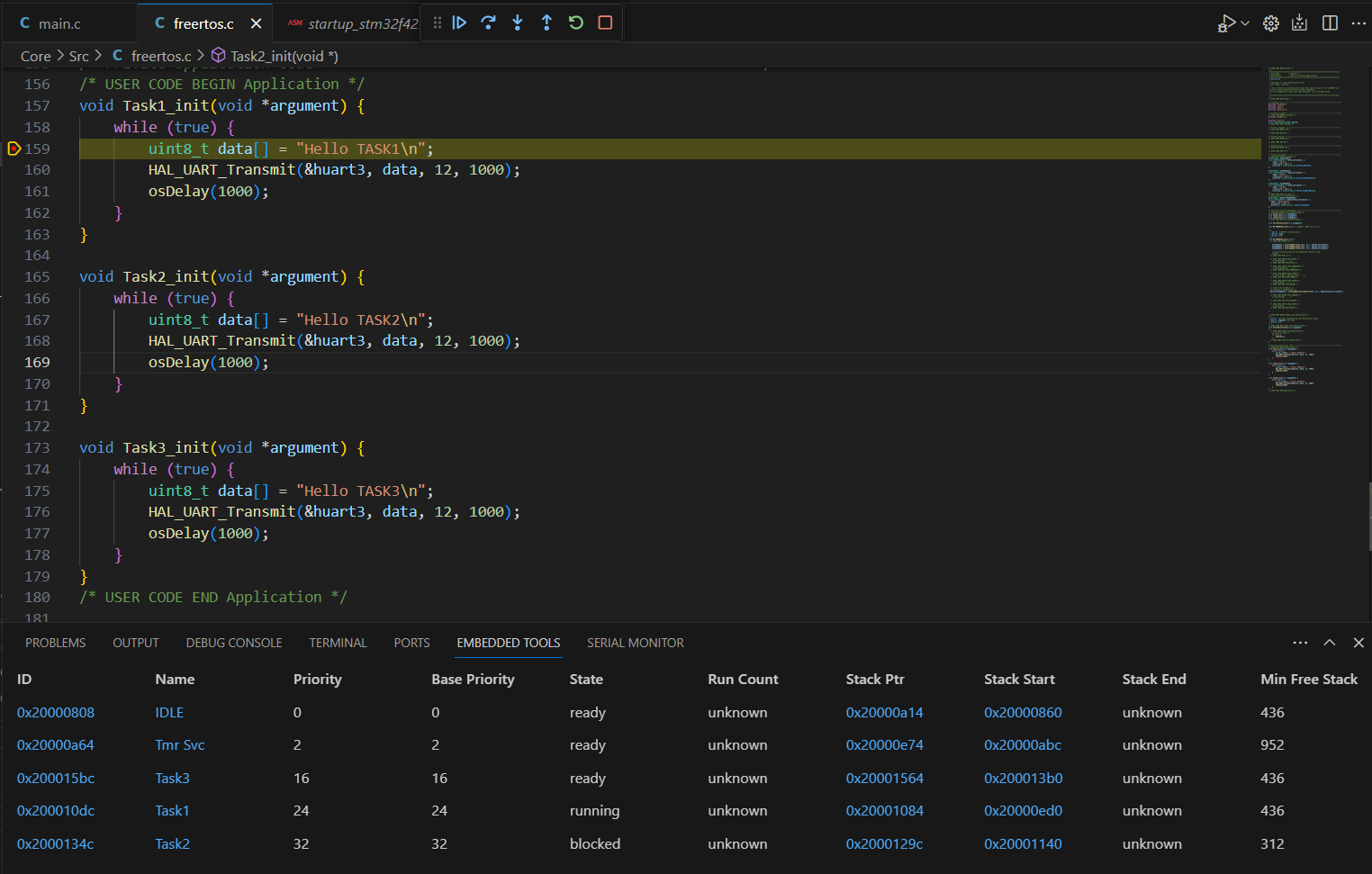

Open the Embedded Tools tab in the terminal.

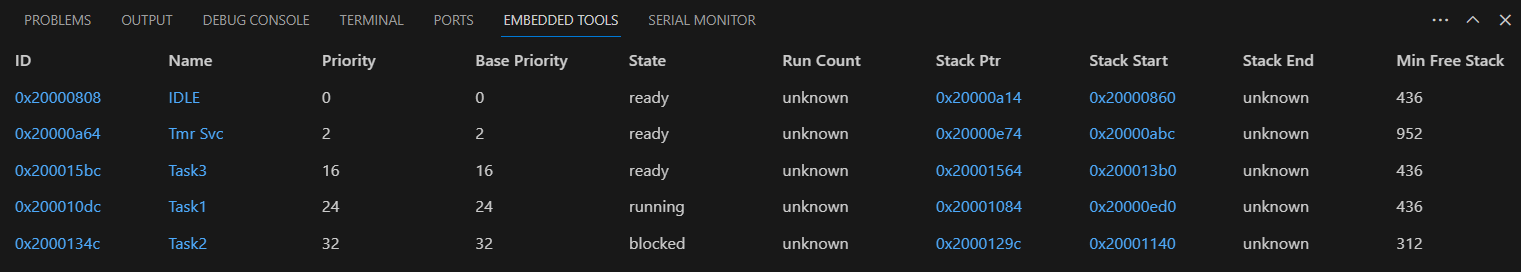

Threads

The RTOS Viewer provides threads by default.

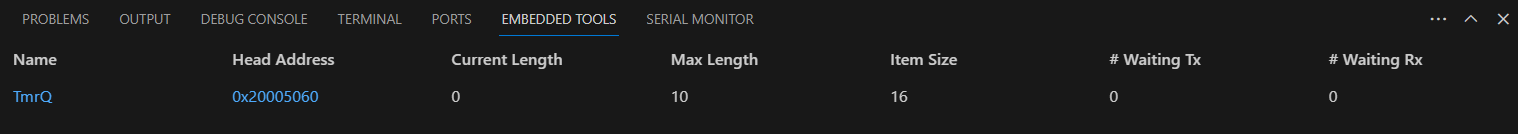

Queues

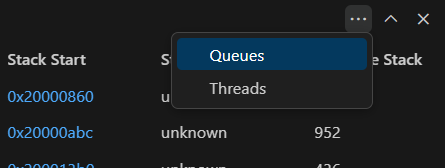

Click the ellipses at the top-right corner of the terminal and select Queues.

Viewing Memory

Clicking on the hex values of an associated thread/queue will allow you to inspect the memory contents.
You may be prompted to install the Hex Editor extension.

Example

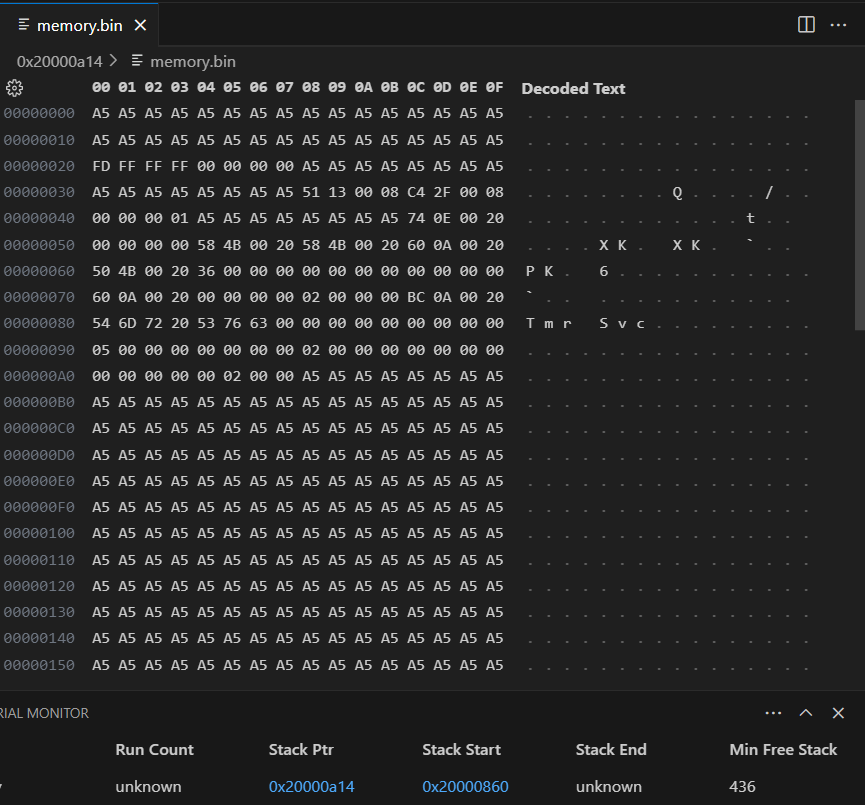

Clicking on the address of the Stack Ptr, 0x2000 0a14, belonging to the IDLE thread yields the following contents.
The accompanying Decoded Text corresponds to the Memory Map.
You can configure whether to show the Decoded Text and how many bytes to display per row using the settings button on the top-left corner of the memory map.

Example

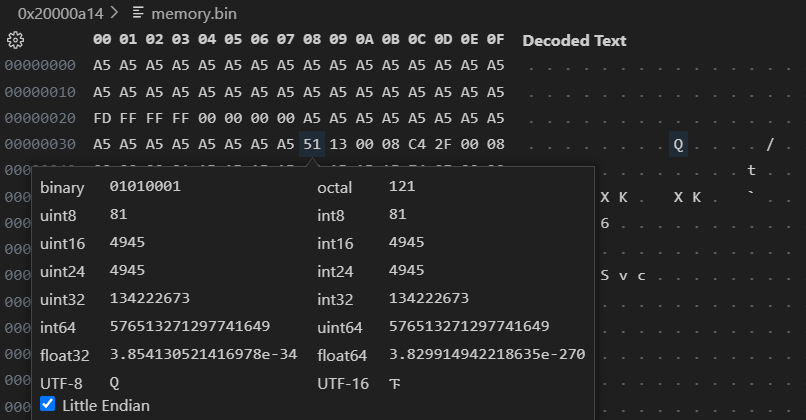

Let's look at the contents of 0x0000 0038. You can hover your mouse over it or click it.

The contents of it is displayed as hex 0x51.
The contents reveal that, as a uint8 integer, this value is decimal 81.
Hex 0x51 is decoded to ASCII Q in UTF-8.
Note that you can enable/disable Little Endian

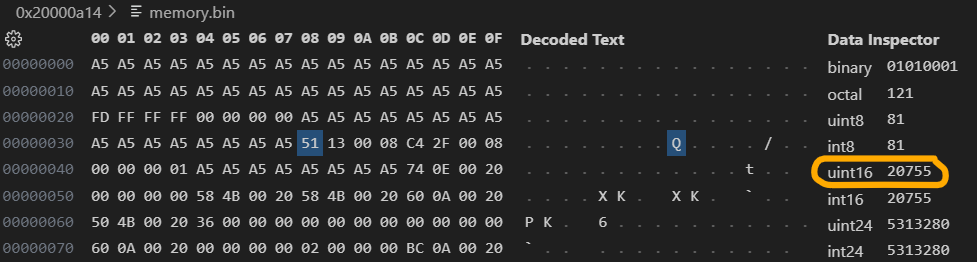

But how is the data decoded for the other data types, such as uint16? Inspect the binary values of two addresses at a type. One pair of hex digits equates to two bytes (i.e., only 8 bits). Inspect the contents of 0x0000 0039. Concatenating the binary values stored here with the binary values from 0x0000 0038 while Little Endian is disabled: 0x01010001 00010011 yields a uint16 integer value of decimal 20755, which is shown when inspecting 0x0000 0038 (also known as, 0x51).

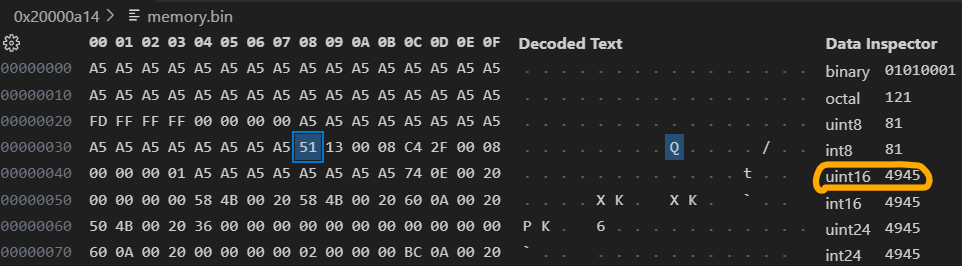

Enabling Little Endian should require the concatenation to be swapped: 0x00010011 01010001 yields a uint16 integer of 4945. We can verify this by inspecting 0x0000 0038.

Example

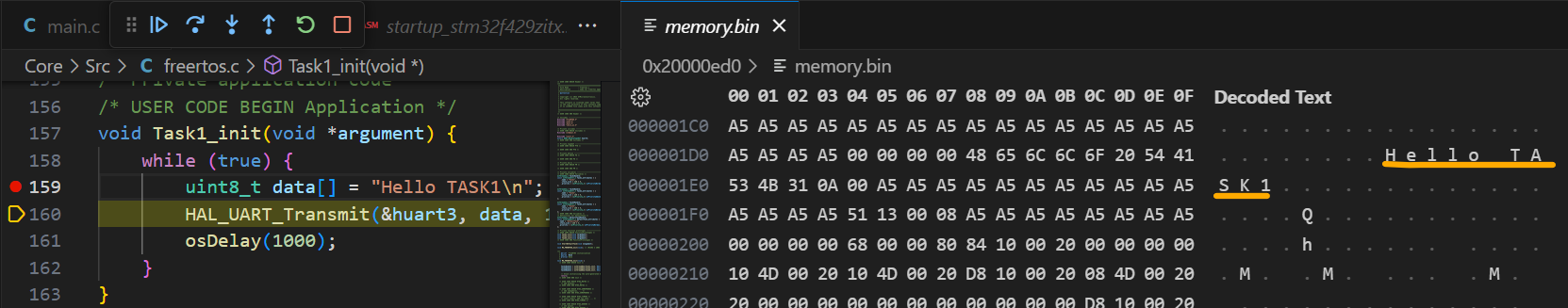

In the Task1 thread, a byte array data is initialized with Hello TASK1\n.
To find this in memory, click on the Stack Start address (0x2000 0ed0) of the Task1 Thread.
You will find the decoded ASCII characters in the Decoded Text area.
