Timing and Concurrency

This page was last updated: September 3, 2024

Hardware Timer

Note

Currently, due to the implementation of CubeMx's auto-generated timer callback functions, the hardware timer is not abstracted away and is not kept as a component of the Platform layer. It is minimally implemented in main.c.

The DAQ needs an accurate timer to periodically create timetamps that are to be associated with a new data sample. RTOS timers are not simple to implement, but have a less consistent precision. A hardware timer is utilized to meet this requirement.

The first step to enabling a hardware timer is to identify the bus it is attached to. A timer's frequency is initially subjected to the frequency of the bus it belongs to. Depending on the implementation of the microcontroller chip, different timers may be attached to different busses. This is platform-dependent.

Before continuing, make sure to have a specific timing deadline at which the timer interrupt signal will fire. This will be a parameter for the following calculations.

\[ Bus \ frequency / Prescaler \ value = Clock \ rate \]
\[ (Time \ deadline)(Clock \ rate) = Number \ of \ steps \ or \ ticks \]

The microcontroller may come with a prescaler, which divides the bus frequency to slow down the rate of the clock. This allows for adjusting the possible range of possible timing deadlines.

With a known time deadline, the clock rate can be utilized to determine the total number of clock ticks until it reaches the deadline. Once the number of ticks is reached, the timer will fire the interrupt signal and the pre-determined time deadline. That is, this is the number of ticks required for performing a single periodic interval.

Tip

Increasing the prescaler and/or number of steps will lengthen the amount of time we can measure with a clock.

STM32 Example

Currently, the DAQ uses the TIM7 timer peripheral. This is attached to the APB1 bus. So, \(Bus \ frequency = 84 MHz\).

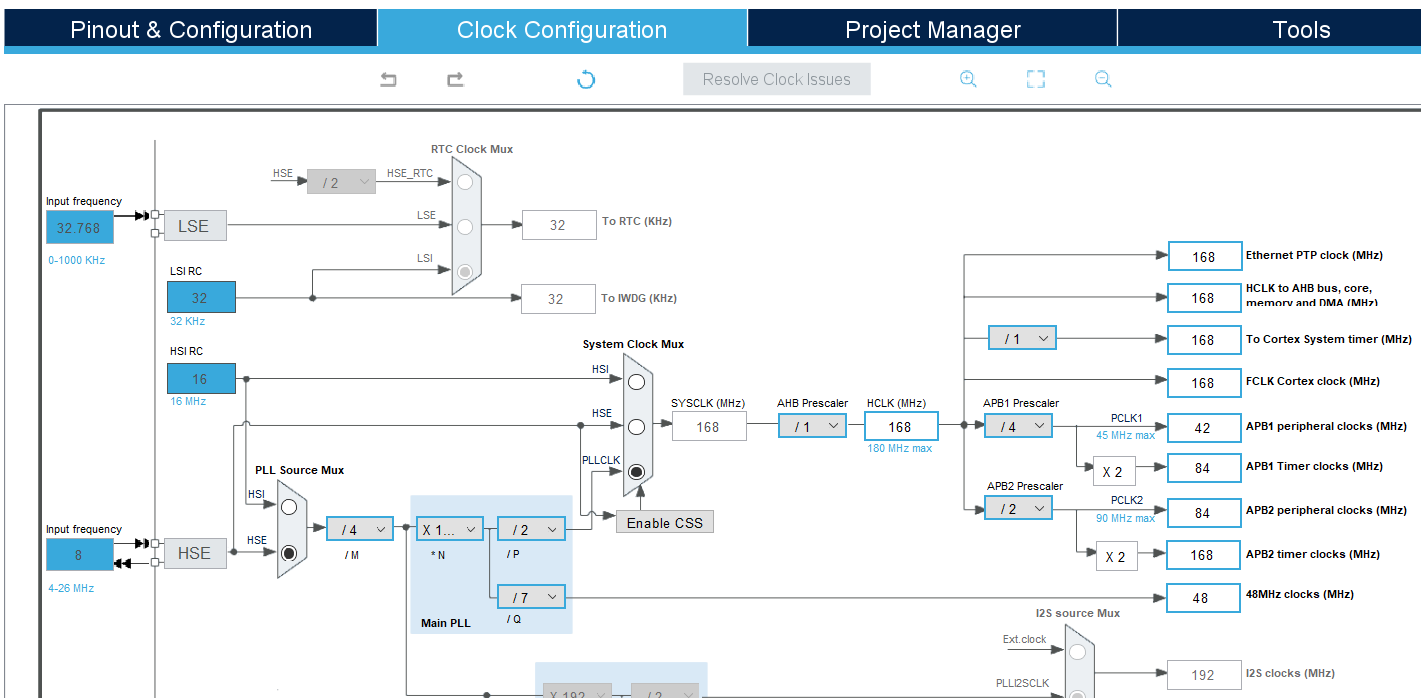

Clock tree

For simplicity, we will make the clock tick roughly about 10 KHz. That is, we will divide the bus frequency by 8,000. So, \(Prescaler \ value = 8,000 - 1\).

Then, compute: \((Bus \ frequency) / (Prescaler \ value) = (84,000,000) / (8,000 - 1) = 10,501 = Clock \ rate\)

Say we want the DAQ to to create its timestamp every 2 seconds. Compute: \((Time \ deadline)(Clock \ rate) = (2 \ seconds)(10,501) = 21,002 = Number \ of \ steps \ or \ ticks\)

Take note of the prescaler value and the number of ticks. These values will be used in CubeMx. Note that we entered their rounded values.

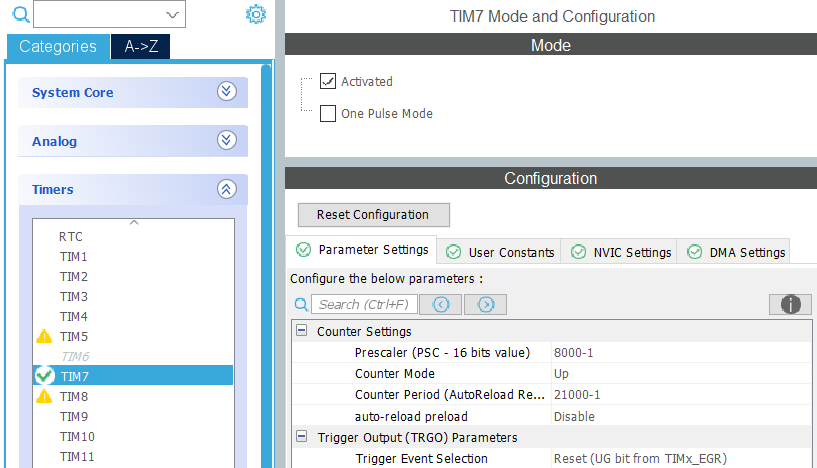

Timer configs

Enable the timer signal to trigger an interrupt.

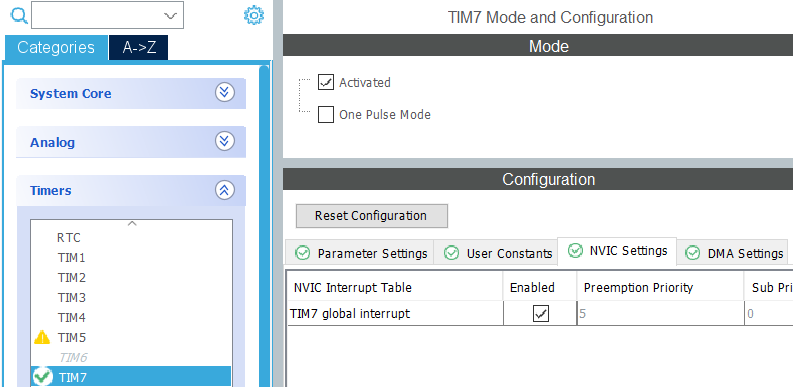

Timer interrupt config

Enable the following modes for the RCC peripheral.

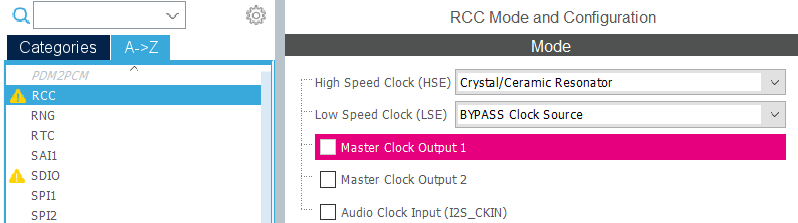

RCC config

Success

You can learn further more on DigiKey's Getting Started with STM32 - Timers and Timer Interrupts tutorial.

RTOS

Note

Threads and tasks are synonymous here.

Multi-threading

  • Each firmware component is dedicated its own thread. Therefore, each firmware component has its own dedicated super loop.
  • Note that if the microcontroller only has 1 core, then only one thread will run at a time despite having numerous threads.
  • List of threads:
    • One each for every sensor
    • Data logging
    • Time stamping

Scheduling

  • Task priorities enabled.
  • Preemptive scheduling enabled: At every tick, the scheduler will check whether a higher-priority task is Ready to run. This will preempt over the currently running task and the processor will run the higher-priority task, putting a pause to the lower-priority task.
  • Most threads run indefinitely in a forever-loop. However, the timestamping thread is an exception. By using CMSIS-RTOS V2's Thread Flags feature, this particular thread will run when the Hardware Timer signals it to.

Warning

A logically higher-priority task is usually represented with a numerical value closer to 0. That is, the lower the priority number, the higher the priority.

Tip

It is recommended for tasks that are responsible to provide fast interaction to the user to run fairly often. Components such as the DataLogger may benefit from being suspended less often in comparison to other threads.

Tip

For determining which CMSIS-RTOS V2 features are safe to perform in an Interrupt Sub-Routine (ISR), you can check their List of ISR-safe features.

Data Sharing

Two components are declared as global objects and shared among multiple threads: DataPayload and CircularQueue.

A single instance of a DataPayload object is updated by all sensor-reading threads. The time stamping thread will periodically create a copy of this object as a means of sampling, and associate a newly created timestamp with it. This new copy of DataPayload containing a timestamp is inserted into the CircularQueue.

Only two threads need to share the CircularQueue: the timestamping thread and the data logging thread. The DataLogger will check for a new instance of DataPayload to log.

These two shared objects must be guarded by a mutex. Generally, with any shared resource, a thread should request for its access before making use of it. A mutex forces the threads to use a shared resource in sequence (one at a time) instead of allowing them to interrupt each other and corrupt information.

The timestamping thread has higher priority than the sensor threads due to its strict deadline. Using a mutex before accessing the shared DataPayload instance will prevent the timestamping thread from interrupting a sensor thread from when halfway to updating with a new sensor reading.

Using a mutex before accessing the shared CircularQueue will ensure the queue's status of whether it is full or empty to be more accurate.

Timestamp Creation

The currenty strategy to creating a relative timestamp (that is, a measurement of time in respect to the start of the data logging session), is simple:

  • With a known timing deadline, you will know when the timer interrupt will occur.
  • Create a counter variable.
  • Within the interrupt callback function, increment the counter variable.
  • The Timestamp thread will compute the timestamp by multiplying your known time deadline with the counter variable.
\[ (Time \ deadline)(Number \ of \ timer \ interrupt \ signals) = Timestamp \]

In the earlier example, we have decided a deadline of 2 seconds. If 7 seconds have passed, then we can expect the counter variable to have counted 3 timer interrupts, each 2 second apart.

This is why the Timestamp thread is the most time-critical.

Process Summary

Consider the following scenario.

Multi-threading sequence diagram

  • DataLogger is responsible for user-interaction and must prevent the CircularQueue from overflowing. Naturally, we will have this task run more often with higher priority.
  • DataLogger successfully locks CircularQueue to check for data to log.
  • Since no other firmware component has locked the CircularQueue, DataLogger successfully claimed it for its use.
  • Since DataLogger has higher priority than the sensor threads, it is not preempted and therefore completes its task without interruption before suspending itself.

This first transaction is the best case scenario for performance. Without other threads trying to lock the same shared resource, there is less context switching — this is known to be the largest cause of delay in multi-threading.

  • LinPots lock an instance of DataPayload.
  • However, suppose that the ECU has higher priority, LinPots is preempted and put to a pause.
  • ECU tries to claim DataPayload, but it is already claimed by LinPots. So, ECU is suspended.
  • The processor returns to LinPots to finish the job and release the mutex.
  • With DataPayload available, the processor continues with ECU's attempt to lock it.
  • ECU finishes its task and releases DataPayload.

The mutex between these two threads is technically not necessary, as they are both updating different fields of the DataPayload struct. Rather, the mutex is there to handle sharing with the Timestamp thread. This is demonstrated next.

  • The IMU thread claims DataPayload.
  • IMU is preempted by DataLogger due to having lower priority.
  • DataLogger claims the CircularQueue.
  • The hardware timer triggers Timestamp to run. This has higher priority and preempts over DataLogger.
  • Timestamp fails to lock DataPayload, as it is already claimed by IMU. This thread is suspended.
  • The processor returns to DataLogger and finishes the task. CircularQueue is released.
  • The processor returns to IMU to finish the task. DataPayload is released.
  • With DataPayload finally available, the Timestamp thread continues its task and locks the CircularQueue.
  • Timestamp finishes its task by inserting a copy of DataPayload into CircularQueue.

Without the DataPayload mutex, the Timestamp thread could be sampling an incomplete instance of data if it were to interrupt a sensor thread mid-updating.

Without the CircularQueue mutex, the DataLogger may be less efficient with checking if the queue is empty. And Timestamp may be less efficient with checking if the queue is full.
